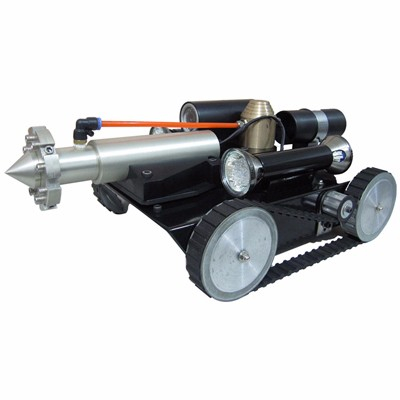

Equipped with a special propriety sudden explosive pulse air hammer and air whip.This robot can loosen accumulated dust in air duct in an instant enabling this dust to be collected by Dust Absorption
Equipped with a special propriety sudden explosive pulse air hammer and air whip.
This robot can loosen accumulated dust in air duct in an instant enabling this dust to be collected by Dust Absorption Robot (by way of direct dust absorption method) or to be extracted by a high power vacuum placed at the other end of the air duct (by way of raised dust absorption).
Video can be recorded as needed.
Technical Data:
Dimensions: 480mm (L) x 270mm (W) x 175mm (H)
Weight: 11 kg
Operating Voltage: 24V dc
Power: 90W
Operating Range: Standard length 20 meter; can be extended to 100 meter if required.
Types and Materials of Air Ducts to be cleaned: Rectangular or square air ducts made of metal or composite materials.
Cleaning Method: Rotating pulse hammer or rotating air whip.
Operating Air Pressure: 0.6MPa ~ 1.2MPa
Driving Mode: Crawler type or four-wheel drive (to be decided by customer at time of placing order).
Critical Performance Parameters: Obstacle crossing > 45mm; climbing capability > 40°
Travelling Speed: 0-12 m/min (continuous variable transmission)
Video Recording & Illumination: Double front and rear, 420 lines, industrial grade, infrared color video cameras. Four (front and rear) scatter type high intensity illumination (3Ls - long life, low temperature, LED).
