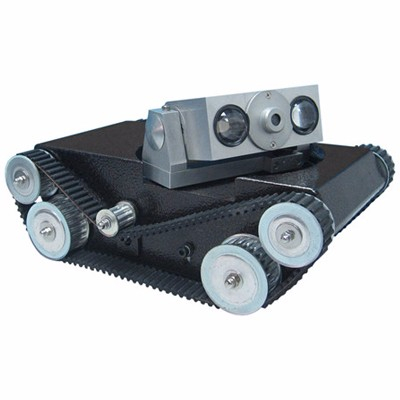

Video Inspection and Sampling Robot CW-T29

Equipped with a 360 ° auto rotating, free angle adjustable tilting, color video camera (complete with high intensity illumination) and jib-arm auto up/down dust collecting device, this robot travels i

  • Brand: CUMOND
  • Model: CW-T29
  • Warranty: 12 months
  • Packing: Wooden case/wooden pallet


  • Equipped with a 360 ° auto rotating, free angle adjustable tilting, color video camera (complete with high intensity illumination) and jib-arm auto up/down dust collecting device, this robot travels inside the air duct on tracked mechanism.

  • Through observing the interior condition of the air duct and the samples so collected, the service provider can then come up with a customized cleansing and disinfection proposal for the Manager’s approval.

  • Video can be recorded as needed.


Technical Data:

Dimensions: 230mm (L) x 150mm (W) x 110mm (H)

Weight: 4 kg

Operating Voltage: 24V dc, Power: 75W

Operating Range: Standard length 20 meter; can be extended to 100 meter if required.

Driving Mode: Crawler type only.

Critical Performance Parameters: Obstacle crossing > 45mm; climbing capability > 40°

Travelling Speed: 0-12 m/min (continuous variable transmission).

Video Recording & Illumination: 520 lines, industrial grade, 360° auto rotating, 90° adjustable tilting, color video camera. Four (front and rear) scatter type high intensity illumination (3Ls - long life, low temperature, LED).

Sampling Method: Mechanical jib-arm, auto up/down, dust collecting sampling device.
