Special high speed motor, and in “aised dust absorption” working mode only.
Comprehensive indicating panels to include meters to show voltages and current consumption of fan motor, filter resistance alarm, fan motor overload, overheat and current leakage protection.
3 stage filter efficiency, 99.7% trap rate for particles with a size of not smaller than 0.3mm.
Concentration of emission: Concentration of PM10 particles in the exhaust air shall not be more than 0.15 mg/m3.

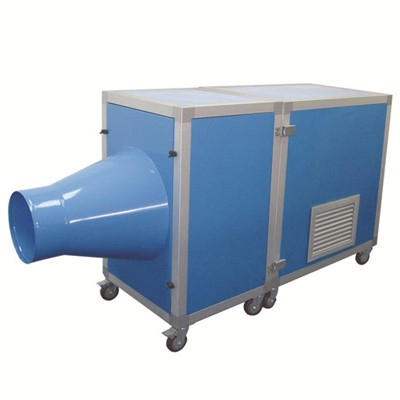

Technical Data and Standard Configuration:
Dimensions: 2,150mm (L) X 740mm (W) X 1,130 (H) (Sub-divisible: 1,000mm for fan section, 600mm for filter section, and 550mm for suction port section)
Weight: 185 kg
Operating Voltage: 380V ac/50Hz, Power: 4,000W
Dust absorption mode: Raised dust absorption method.
Maximum vacuum: 850 Pa for raised dust absorption method.
Filter efficiency: 99.7% trap rate for particles with a size of not smaller than 0.3mm.
Concentration of emission: Concentration of PM10 particles in the exhaust air shall not be more than 0.15mg/m3.
Display and protection: Equipped with multiple protection system...meters to show voltages and current consumption of fan motor, filter resistance alarm, fan overload, overheat and current leakage protection.
