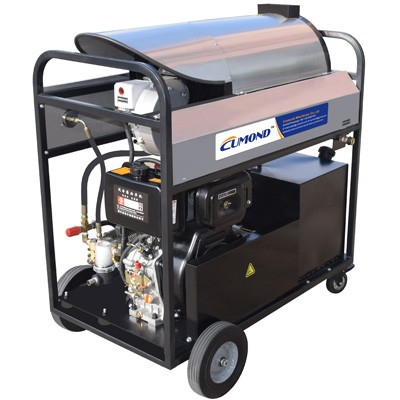

Diesel steam and hot&cold water cleaning machine CW-DSW10
It can be used for outdoor mobile industrial cleaning, diesel heating, 12V/60AH battery drive, cold water, hot water, steam 3 in 1 high pressure cleaning mode, converting cold water into steam for about 60 seconds. Italy RIELLO burner, Germany PARKER full set of sports seals, lack of water protection, shut off the gun to stop heating, instant heat, ultra low energy consumption, all stainless steel heating coil.
Self-powered high-temperature steam cleaning machine jet generated by about 180 ℃ high-pressure steam can dissolve any stubborn grease, oil and other difficult to solve the problem easily solved, this section of high-pressure cleaning machine for the field of long-term cleaning operations, Great flexibility, no power supply. Designed for cleaning operations such as port facilities (container), offshore oil collection facilities, construction machinery and vehicles, railway locomotives, mining, shipbuilding, electric power, chemical, construction road machinery, municipal sanitation and other cleaning operations.
—— Specifications ——
Model
CW-DSW10
Steam
Steam flow
L/H
120
Steam pressure
Bar/Mpa
35/3.5
Steam temperature
℃
145~185
Hot water
Water flow
L/H
660
Hot water pressure
Bar/Mpa
200/20
Temperature
℃
90
Diesel power
HP
10
Start mode
Electric
12V / 60AH
Machine size
MM
1070×780×1150
Weight
KG
183
—— Standard Accessories ——
—— Features ——
1. Built-in power generation with great flexibility to use, in any place where no power cleaning operations;
2. Industrial lubricating ceramic piston pump, forged copper pump head, pressure stepless adjustment, import seals, high reliability, long life;
3. The use of advanced spiral long alloy pipeline design, high heating efficiency and long service life;
4. With over-pressure protection, water protection, off the gun stop heating, after the resumption of fire, anti-dry function;
5. Adjustable temperature control, auxiliary belt drive AC power generation, stable and reliable;
6. Steam / hot water combination design, improve cleaning efficiency, suitable for a variety of working conditions;
7. Easy to operate, only the key to achieve the device start and stop;
8. Single cylinder steam / diesel engine, cold start preheat function
9. Rugged metal frame structure design, surface spray treatment;
10. Unique shock design, pump and engine installation of high precision, small pump running vibration, low temperature, low noise;
—— Application ——
Petrochemical, machinery manufacturing, electricity, automobiles, ships, railway roads, construction, metallurgy, mining and other industrial cleaning areas.
1. mining transport vehicles, drilling equipment, clean, sea oil spill facilities such as oil cleaning;
2. port facilities, municipal sanitation, aquaculture and other cleaning;
3. railway locomotive parts, body shell, air conditioning train central air conditioner cleaning;
4. mining vehicles and other engineering machinery body, parts oil / grease cleaning;
5. metallurgical system Roll, gear, bearings and other equipment parts oil, grease cleaning;
6. construction vehicles, machinery cleaning, road deck cleaning;
7. road maintenance, facilities cleaning and maintenance, gas stations, toll stations clean;
8. industrial buildings inside and outside the wall, the ground, the plant cleaning.
