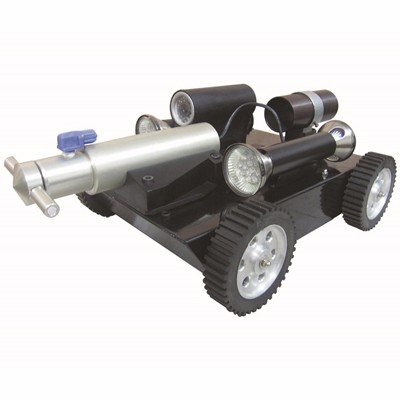

Modular Type Spraying and Sterilizing Robot

Modular Type Spraying and Sterilizing Robot

  • Brand: CUMOND
  • Model: CW-T03
  • Warranty: 12 months
  • Packing: Wooden case/wooden pallet


  • Equipped with double front and rear color video cameras (complete with high intensity illumination), 360 ° rotational sprinkler head ensures that disinfectant can reach any point of the air duct.

  • Video can be recorded as needed.

Technical Data:

Dimensions: 460mm (L) x 270mm x (W) x 175mm (H)

Weight: 10 kg

Operating Voltage: 24V dc

Power: 90W

Operating Range: Standard length 20 meter; can be extended to 100 meter if required.

Types and Materials of Air Ducts to be cleaned: Rectangular or square air ducts made of metal or composite materials.

Sterilizing Method: Rotational ultra vapor spraying method.

UV Sterilization: High intensity UV bactericidal lamp (optional item), germicidal efficiency 98-100%.

Driving Mode: Crawler type or four-wheel drive (to be decided by customer at time of placing order).

Critical Performance Parameters: Obstacle crossing > 45mm; climbing capability > 40 °.

Travelling Speed: 0-12 m/min (continuous variable transmission).

Video Recording & Illumination: Double front and rear, 420 lines, industrial grade, infrared color video cameras. Four (front and rear) scatter type high intensity illumination (3Ls - long life, low temperature, LED).

Awesome Image

CUMOND, founded in 2014, is a machinery research and development enterprise specializing in high pressure hot water cleaning equipments, pressure steam washing machines.
