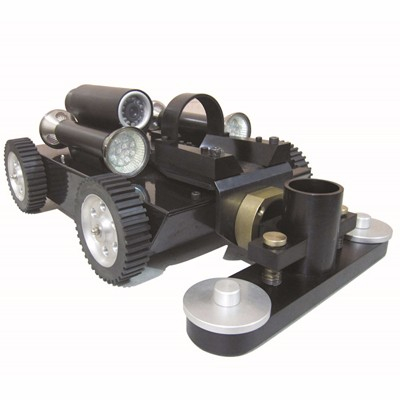

Modular Type Dust Absorption Robot CW-T25

A robot specially designed for “direct dust absorption” method.Equipped with two (front and rear) color video cameras (complete with high intensity illumination) and auto up/down high efficiency absor

  • Brand: CUMOND
  • Model: CW-T25
  • Warranty: 12 months
  • Packing: Wooden case/wooden pallet


  • A robot specially designed for “direct dust absorption” method.

  • Equipped with two (front and rear) color video cameras (complete with high intensity illumination) and auto up/down high efficiency absorption head.

  • Movement on tracked or four-wheel drive mechanism.

  • Along with an external high power vacuum, this robot can absorb all dust being loosened by fellow robots (or otherwise by an air hammer or air whip).

Video can be recorded as needed.


Technical Data:

Dimensions: 460mm (L) x 270mm (W) x 175mm (H)

Weight: 11.5 kg

Operating Voltage: 24V dc

Power: 75W

Operating Range: Standard length 20 meter; can be extended to 100 meter if required.

Types and Materials of Air Ducts to be cleaned: Rectangular or square air ducts made of metal or composite materials.

Driving Mode: Crawler type or four-wheel drive (to be decided by customer at time of placing order).

Critical Performance Parameters: Obstacle crossing > 45mm; climbing capability > 40°

Travelling Speed: 0-12 m/min (continuous variable transmission).

Video Recording & Illumination: Double front and rear, 420 lines, industrial grade, infrared color video cameras. Four (front and rear) scatter type high intensity illumination (3Ls - long life, low temperature, LED).

Dust Absorption Method: Direct dust absorption method.
