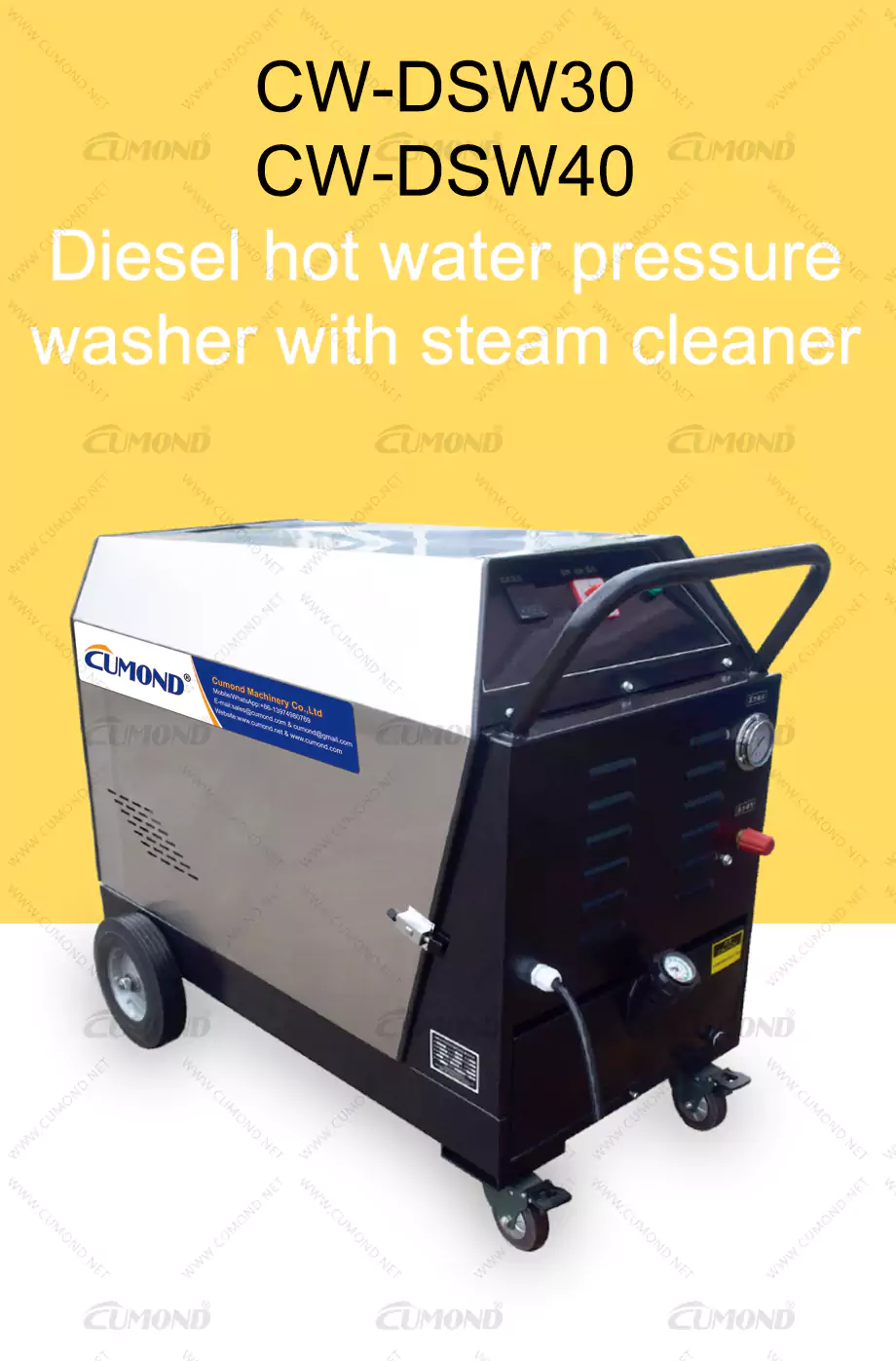

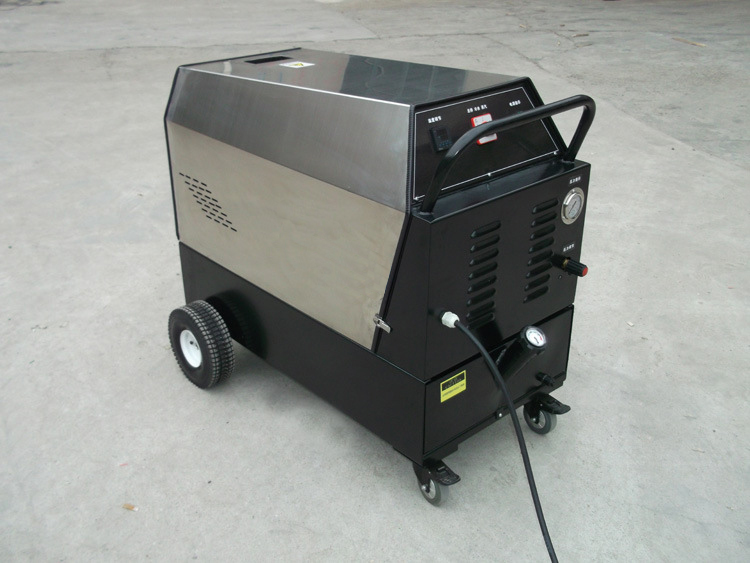

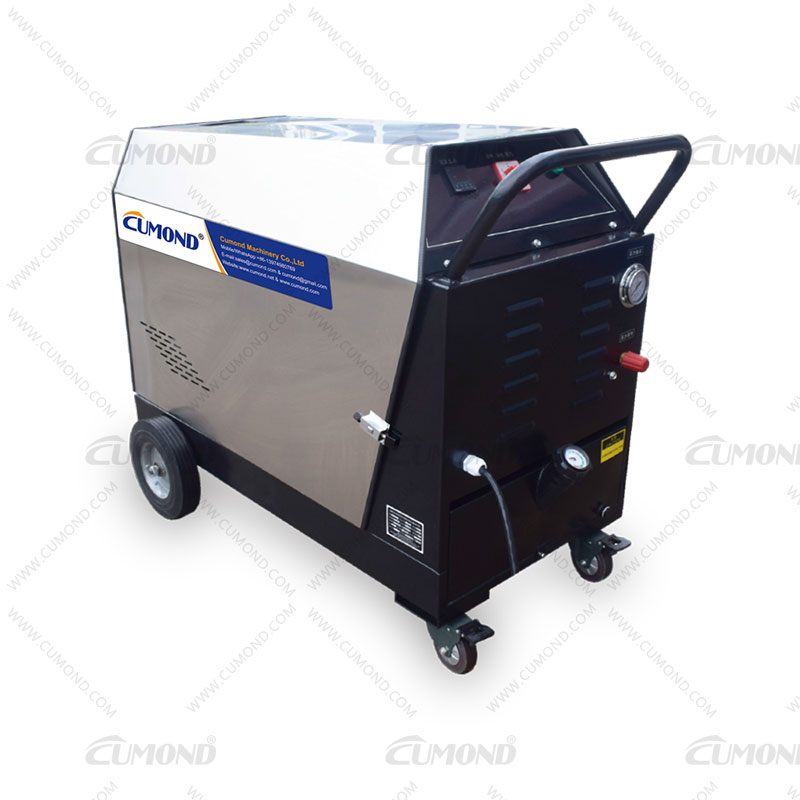

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

Instant High-pressure steam cleaning machine can dissolve any stubborn grease; high-pressure steam can cut into small cracks, stripping, remove the residue.with small water consumption, low power consumption, It is easily resolved and revmove oil and other hard issues.

  • Brand: CUMOND
  • Model: CW-DSW30 / DSW40
  • Warranty: 12 months
  • Packing: Wooden case

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

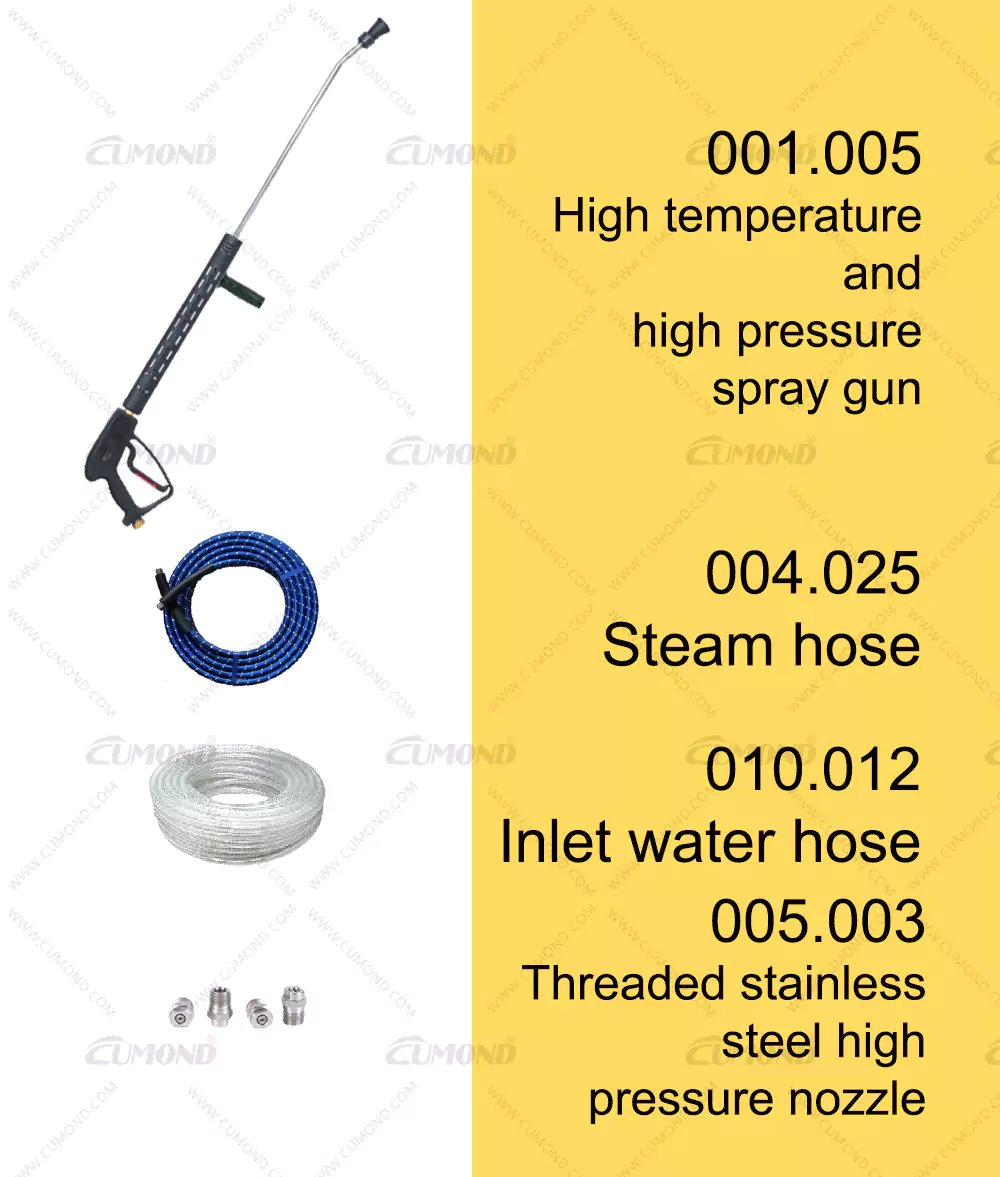

Standard Accessories

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

Instant High-pressure steam cleaning machine can dissolve any stubborn grease; high-pressure steam can cut into small cracks, stripping, remove the residue.with small water consumption, low power consumption, It is easily resolved and revmove oil and other hard issues. It can be adjusted the steam. hot and cold water according to customer conditions, greatly improving the cleaning efficiency.

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

Diesel steam cleaner and hot&cold water pressure washer CW-DSW30 / DSW40

hight pressure clean, pressure washer, power clean, Industrial cleaning machines

hight pressure clean, pressure washer, power clean, Industrial cleaning machines

hight pressure clean, pressure washer, power clean, Industrial cleaning machines

Specifications

Model


CW-DSW30

CW-DSW40

pressure steam

Mpa/Bar

3-5 / 30-50

3-5 / 30-50

Steam flow

L/H

108

120

Steam temperature

145-185

145-185

Hot water pressure

Mpa/Bar

13/130

18/180

Hot water flow

L/H

540

660

Motor

KW

3

4

Power supply

V/HZ

220/50

380/50

Weight

KG

156

168

Size

MM

1150*690*950

1150*690*950

Features

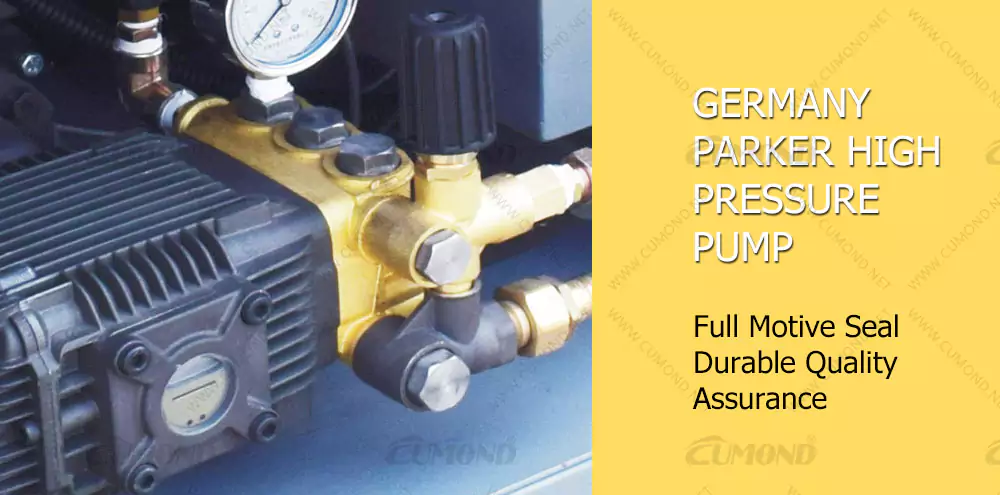

1. Industrial lubrication type ceramic plunger pump, forged copper pump head, stepless pressure regulation, imported seals, high reliability, long life;

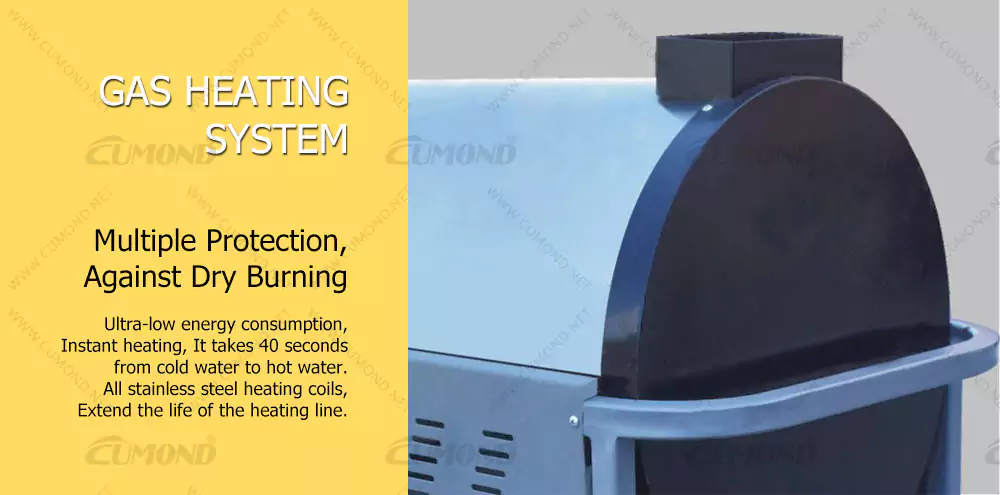

2. The use of advanced spiral long alloy pipeline design, high heating efficiency and long service life;

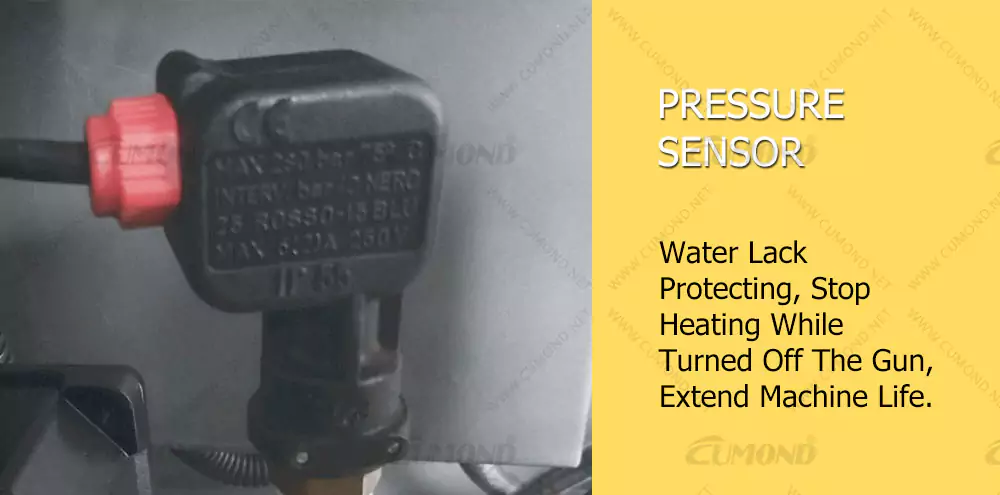

3. With over-pressure protection, water protection, Stoped heating after turned off and recovery after start, anti-dry function;

4. Adjustable intelligent temperature control, with over-heating, over-load and leakage protection design to ensure the safety of users;

5. Steam / hot water modular design, improve cleaning efficiency, suitable for a variety of conditions to use;

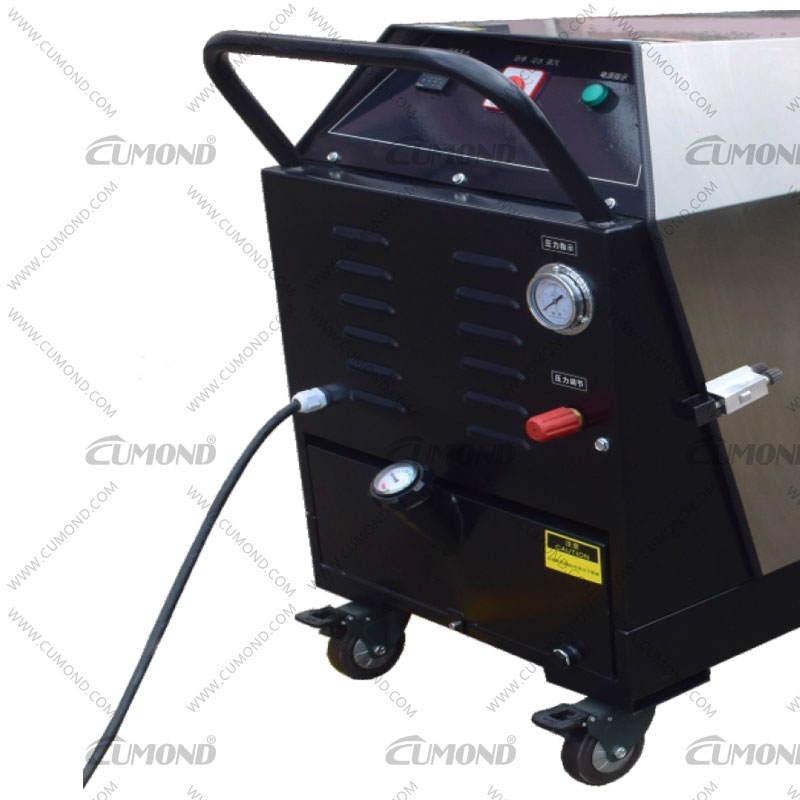

6. Stainless steel shock pressure gauge, precision water filtration;

7. Chassis spray treatment,Easy operate and maintenance;

8. Industrial design, durable, stainless steel heating device;

9. Heavy-duty inflatable wheel and brake caster, easy to move;

10. Unique transmission design, pump and motor installation of high precision, the pump running vibration, low temperature, low noise.

Application

Petrochemical, machinery manufacturing, electricity, automobiles, ships, railway roads, construction, metallurgy, mining and other industrial cleaning fields.

1. Oil drilling company drilling rigs, drilling rigs and other drilling equipment cleaning, oil production wells and oil wells of heavy oil removal;

2. Cold area pipeline thawing, equipment maintenance and maintenance before winter;

3. Production equipment, site, cleaning the production of heavy grease and oil ;

4. Railway locomotive parts, body shell, air conditioning train central air conditioner cleaning;

5. Mining vehicles and other engineering machinery body,cleaning  oil / grease parts;

6. Metallurgical system roll, gear, bearings and cleaning other equipment oil, grease parts ;

7. Engine, gearbox and other maintenance before the removal of dry oil;

8. Ship, machinery and other industries professional tools for cleaning and maintenance;
